Camera Viewer Container

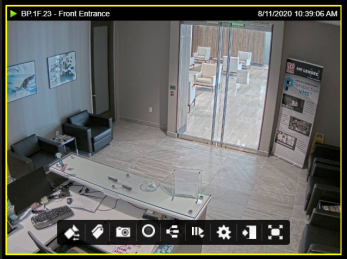

Each camera viewer container will supply one camera stream/thread in a configured codec format. Along with the camera stream, a camera header will appear, and display the camera status, name, location, and date/time. Upon mouse over the camera overlay with controls for that individual camera container will be displayed.

Virtual PTZ

Virtual PTZ Control - the ability to digitally pan and zoom on any image from any camera view, providing more analysis of an area of interest. Users may zoom into any camera container view (even fixed cameras) to allow for virtual pan-tilt-zoom control of the video. This function can be controlled using the wheel mouse and then using your left-mouse click to hold and drag the field of view to the desired area of reference. On non-PTZ or fixed cameras users can also use the zoom slider on the PTZ overlay as an alternative to the wheel mouse.
