Map Browser Overlay

The Map Browser Overlay appears on the map when the mouse is navigated over the map.

Icon	Name	Description
	All Maps Search	Provides the ability to navigate multiple maps by browsing or using a search feature.
	Last Map	Enables direct navigation to the previous map viewed
	Top Map	Enabled direct navigation to the Top nested map in the hierarchy for which the user has access to view.
	Zoom Slider	Enables zoom for greater detail as well as pan/tilt controls on the map.
	All Layers	Provides the ability to show/hide definable layers assigned to the map.
	Floors	Provides the ability to navigate to maps that are nested together within the same site (typically floors).
	Edit Map	Enables the Map Configuration screen in the Administration Module.



Multi-Level Mapping

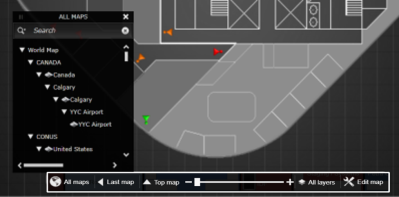

As shown above on the Map Browser Overlay users have the opportunity to navigate multiple maps using the All Maps Search button. When expanded this function allows a user to search or browse hierarchically all, maps they have permissions to view.



Multi-Floor Mapping

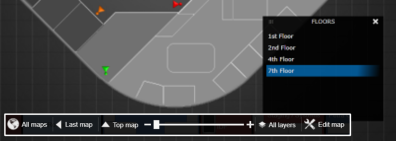

If a site is defined by having multiple maps nested within it, these maps can be browsed as floors using the Floors button.



Custom Map Layers and Map Item Groups

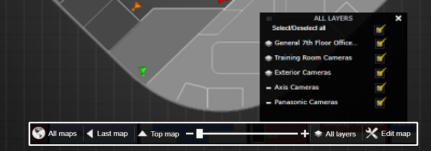

Layers on a map (as defined in the Map Layout Editor) can be selected or hidden by a user in order to better display crowded objects on a Map. Sometimes these layers are used to separate camera or device function (as illustrated below), while other times users may choose to layer sites or objects on a campus overview map.

Map Item Groups, which are defined in Administration Module under Map Item Groups, allow grouping of objects to show or hide on a map independent of map specific layers. Map Item Groups are global across all maps and will show as a selectable option on each map an object associated with that group is displayed. Map Layers on the other hand, are specific to one individual map.

Cameras or objects can be associated to both layers and Map Item Groups.
